Special motor request
image/svg+xml
Customer information
Company name:
*
Name of contact person:
*
Email address of contact person:
*
Jobposition of contact person:
Customer reference:
Motor information
Motor type:
*
PM-motor
3-phase AC motor
1-phase AC motor
Rated power: [kW]
*
Rated speed: [RPM]
*
Rated torque: [Nm]
*
No. of poles:
*
2 poles ≈ 3000 rpm at 50 Hz
4 poles ≈ 1500 rpm at 50 Hz
6 poles ≈ 1000 rpm at 50 Hz
8 poles ≈ 750 rpm at 50 Hz
other
No. of poles:
*
Min. starting torque:
The starting torque required for the application
Mounting of motor:
*
Horizontal
Vertical - shaft up
Vertical - shaft down
Mounting type - Horizontal
*
B3 - Foot-mounted motor
B5 - Motor with free-hole flange
B14 - Motor with tapped-hole flange
B35 - Combination of B3 and B5
B34 - Combination of B3 and B14
×

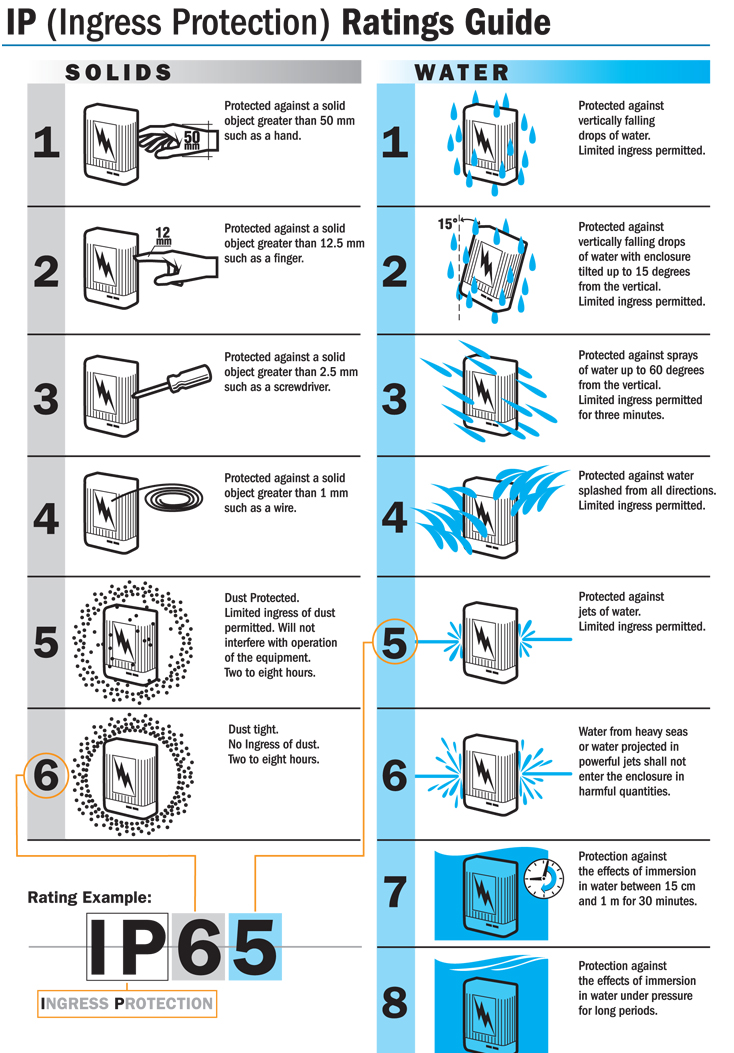

Ingress protection (IP-grade):
×

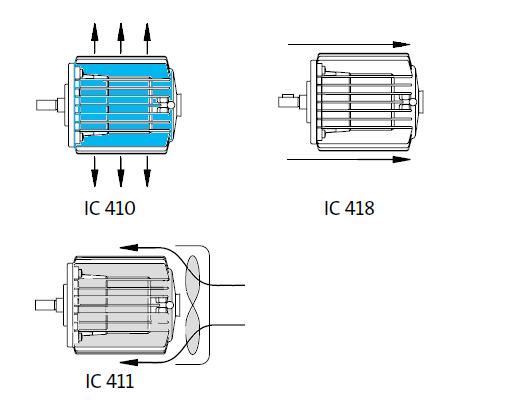

Motor cooling type:
*
IC410 (TENV) - No fan
IC411 (TEFC) - With fan
IC418 (TEAO) - No fan
Other
Other cooling type:
*
Standard options
*
Edit this field if other and additional options are needed
Bearing type:
*
Sealed (2RS, DDU...)
Shielded (2Z, ZZ...)
Other
Other bearing type:
*
Special requirements:
Special dimension according to drawing?
Shall motor be limited to a specific length?
Special dimension for flange?
Special dimension for shaft?
Motor provided with cable?
Shall motor have drain holes?
Shall motor have build-in thermal protection?
Shall motor be rated for inverter duty?
Additional requirements?
Please upload drawing of the desired motor dimensions:
*
Supported file formats: jpg, png, jpeg, pdf, step, stp
Max length [mm]:
*
Flange type according to EN 50347:
*
E.g. FF300
Shaft dimension [mm]:
*
Use format: e.g. Ø42x110
Cable length [m]:
*
Type of thermal protectors and cut off temperature:
*
E.g. PTO 155°C
Inverter model:
If you know which inverter you will use, please fill it in here
Additional requirements:
*
Application type:
In wich application is the motor used in?
Quantity:
*
Please enter the quantity or the yearly demand?
